Product Details

SDS Drill Bit


Color: silver
Brand: SANSUNG
Origine: China
Diameter: 16-38MM
Thread Model: SDS Max, SDS Plus
Insert Button Shape: tungsten carbide
Bit Faces: chisel head, cross head
Packaging: carton
Delivery Time: 15-20DAYS
Sample Order: Yes
OEM Service: Yes
Model: SDS
Details

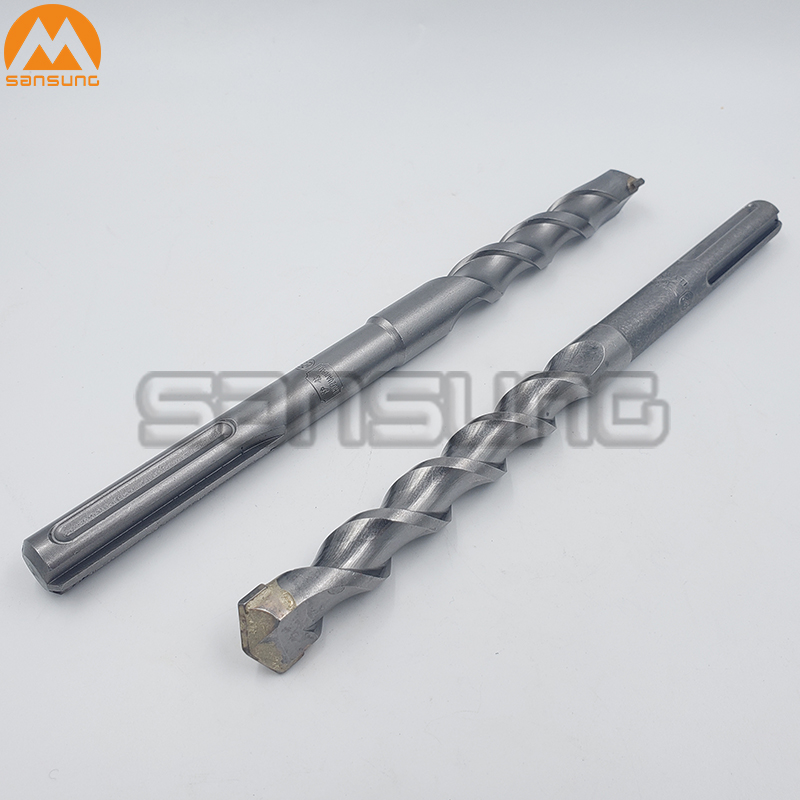

SDS DRILL BIT.jpg

SDS drill bits are used in a rotary hammer drills(on rotary hammer drilling mode)for boring holes into dense masonry,and have special fitment slots on their shank to allow for rapid drill bit changes.The letters SDS are now internationally accepted as meaning "Special Direct System".There are different types of SDS drill bits depending on the pover output of the drill;the two most common being SDS-Plus and SDS-Max.These bits are designed for extensive and efficient masonry drilling and will last much longer than standard masonry drill bits.


Feature

Cross "+" carbide drill bits is made of quality alloy structured steel with special grade carbide tip, and brazed under the temperature of 850 degree.

Application:concrete ,clinker,masonry,stone

Flute available :W flute,U flute,L flute

Carbide: central point style carbide,head chiesel "-" type carbide and Cross (+) type carbide are available

Color:Cobalt color finish. We also can offer different finish : Galvanized finish, Nickel Plated finish, Black and white finish, black finish and Sandblasted finish etc.


Description

sizes

SDS Plus, chisel   head

22*300mm

25*300mm

28*400mm

30*400mm

32*450mm

35*450mm

38*450mm

SDS Plus, cross   head

22*260mm

25*260mm

28*450mm

30*450mm

32*450mm

35*450mm

38*450mm

SDS Max, chisel   head

16*280mm

18*280mm

20*280mm

22*280mm

25*280mm

28*400mm

30*400mm

32*400mm

35*400mm

38*500mm

SDS Max, cross head

16x280mm

18x280mm

20x280mm

22x280mm

25x340mm

28x400mm

30x540mm

32x540mm

35x540mm

38x500mm


*************************************** If need other types and sizes, please contact us to check the availability ***************************************
