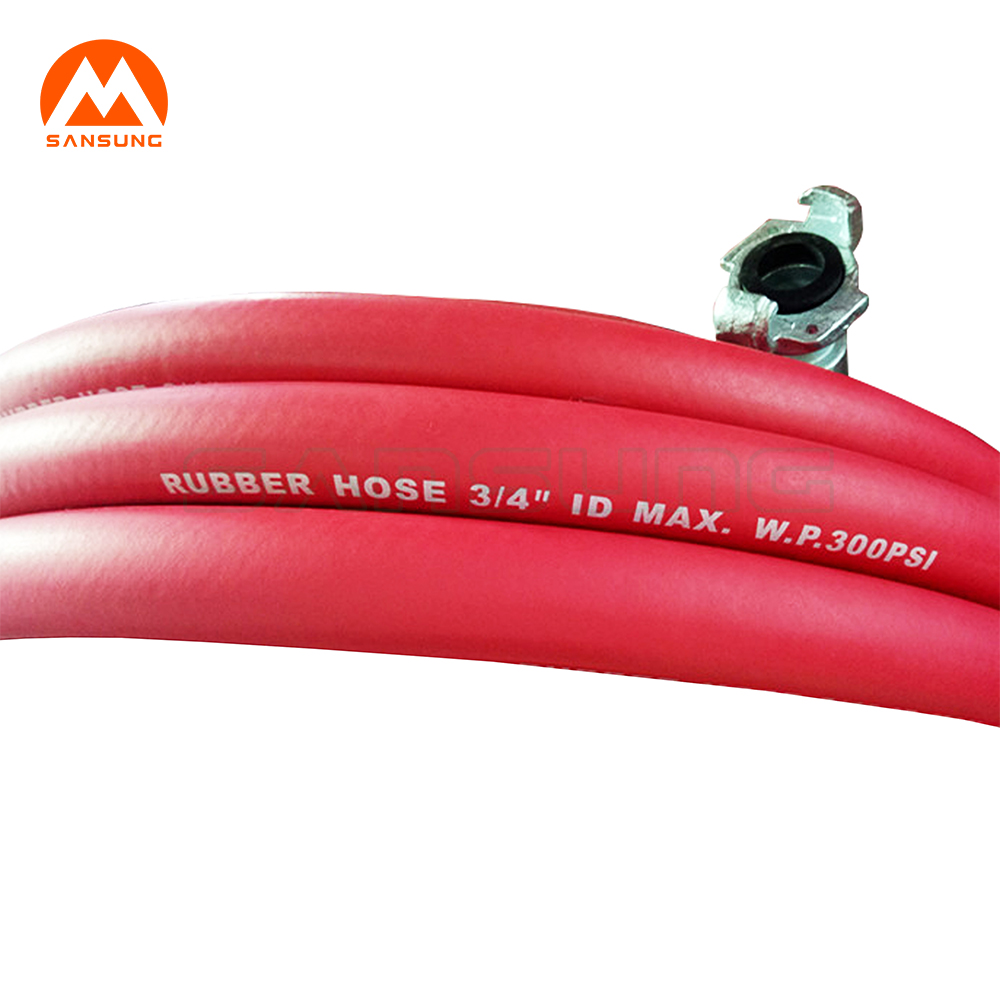

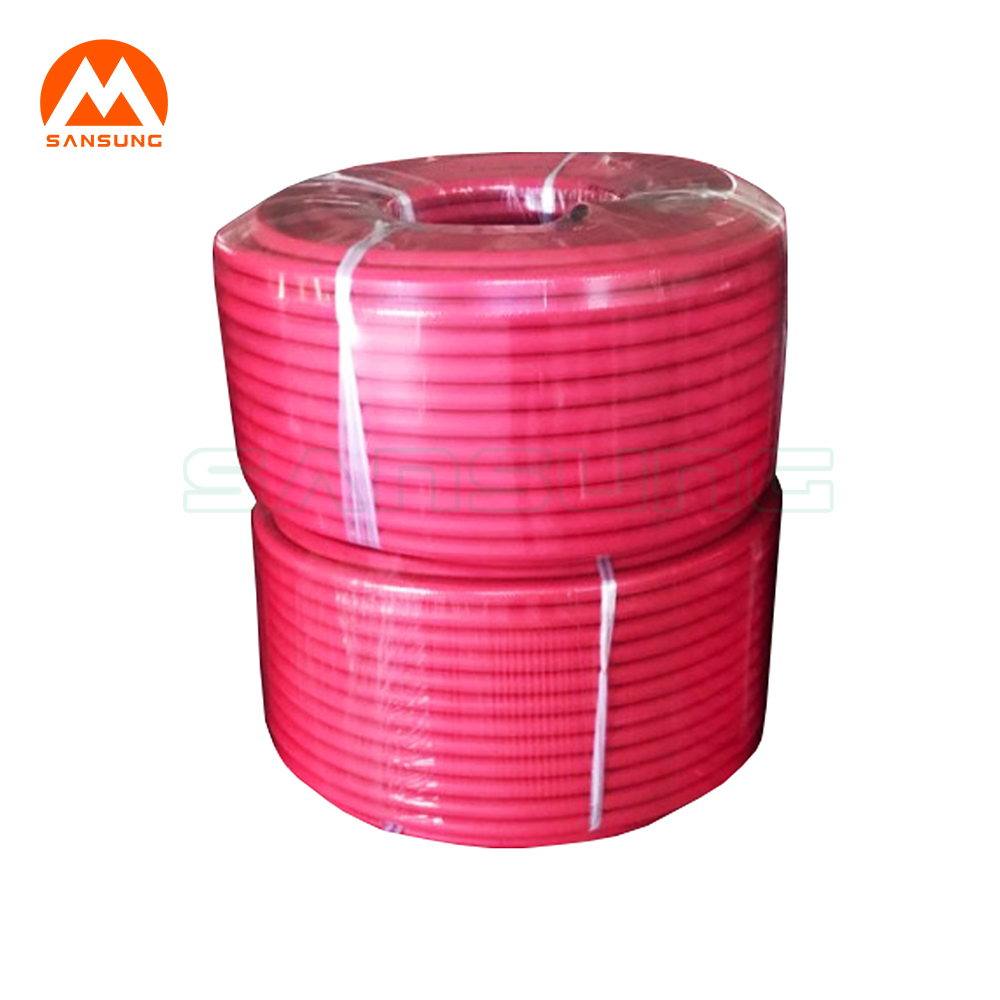

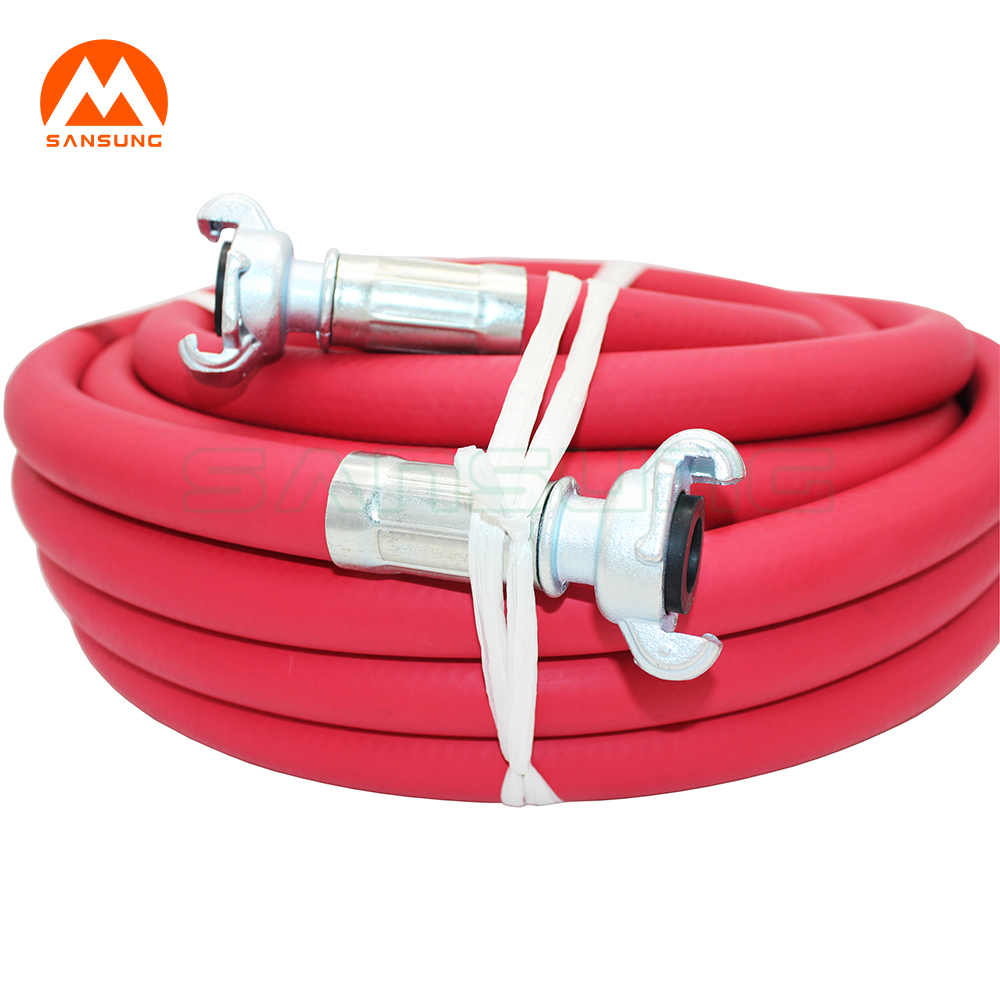

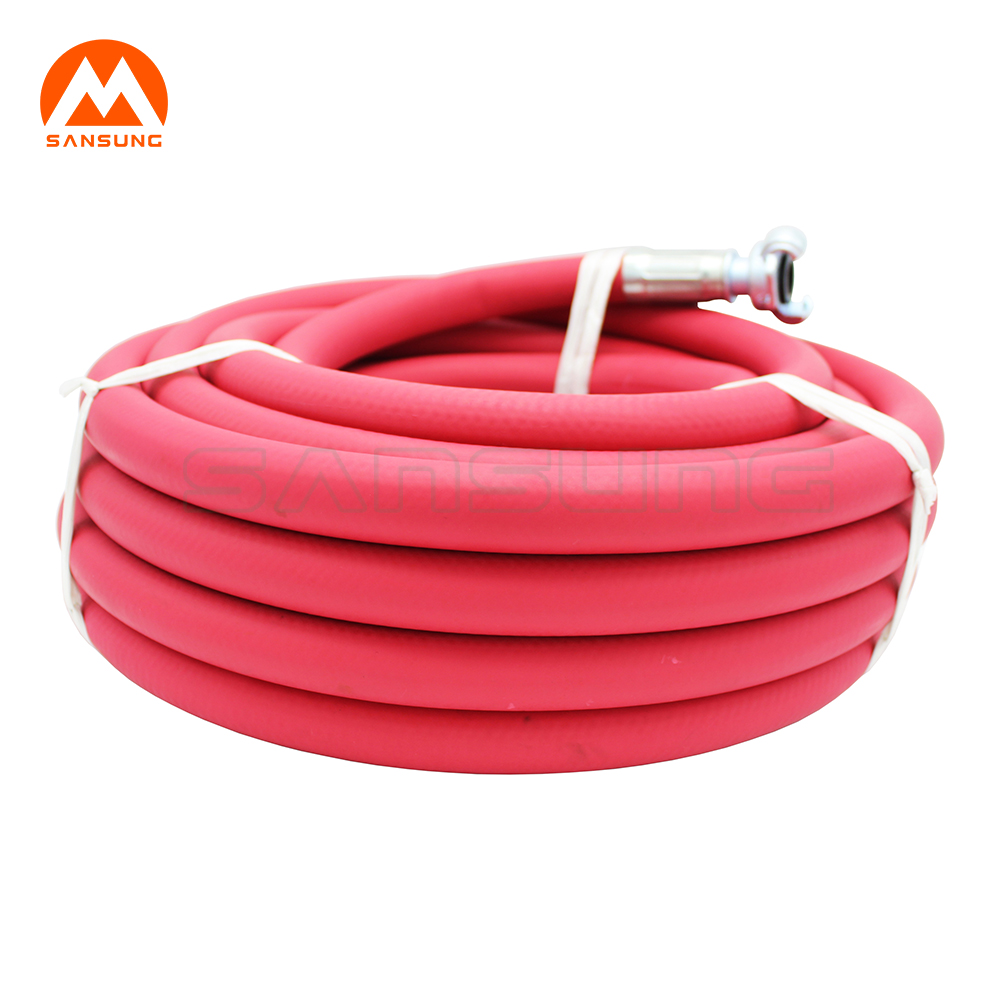

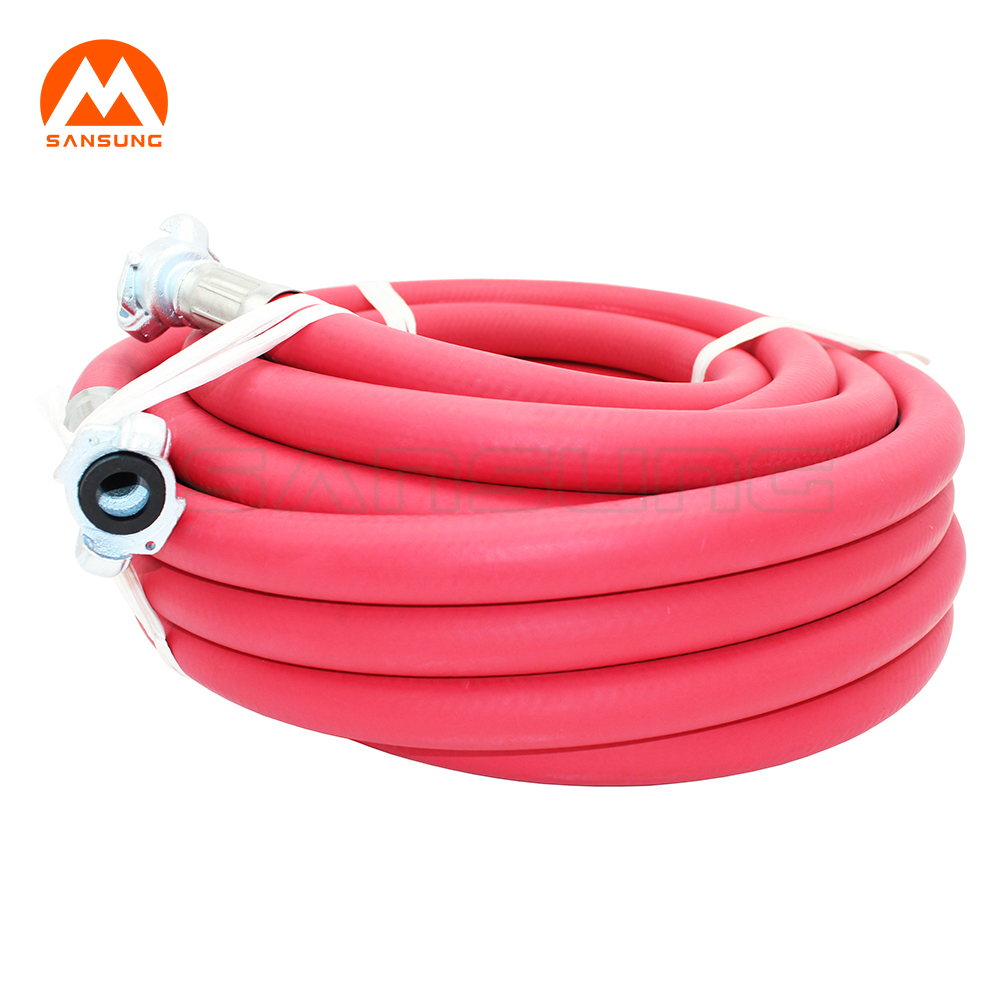

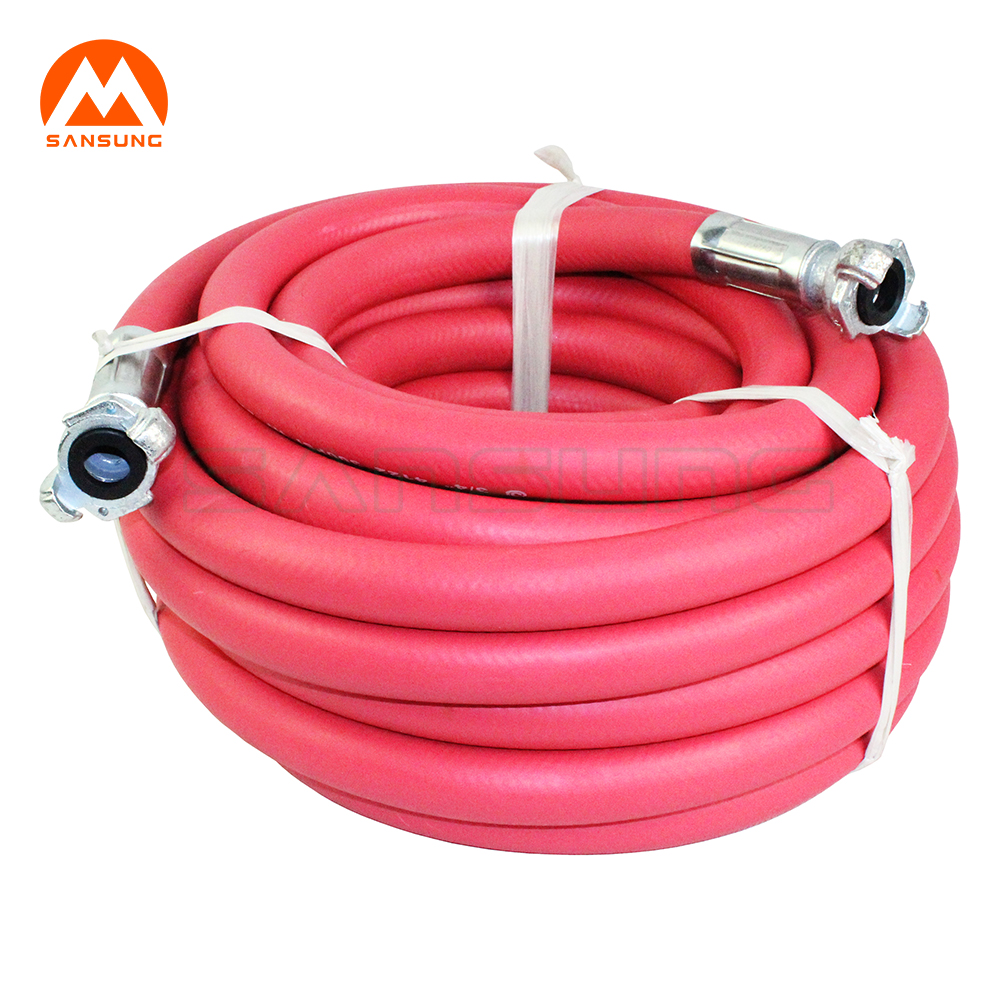

Rubber Air Hose (Jackhammer hose)
Construction:

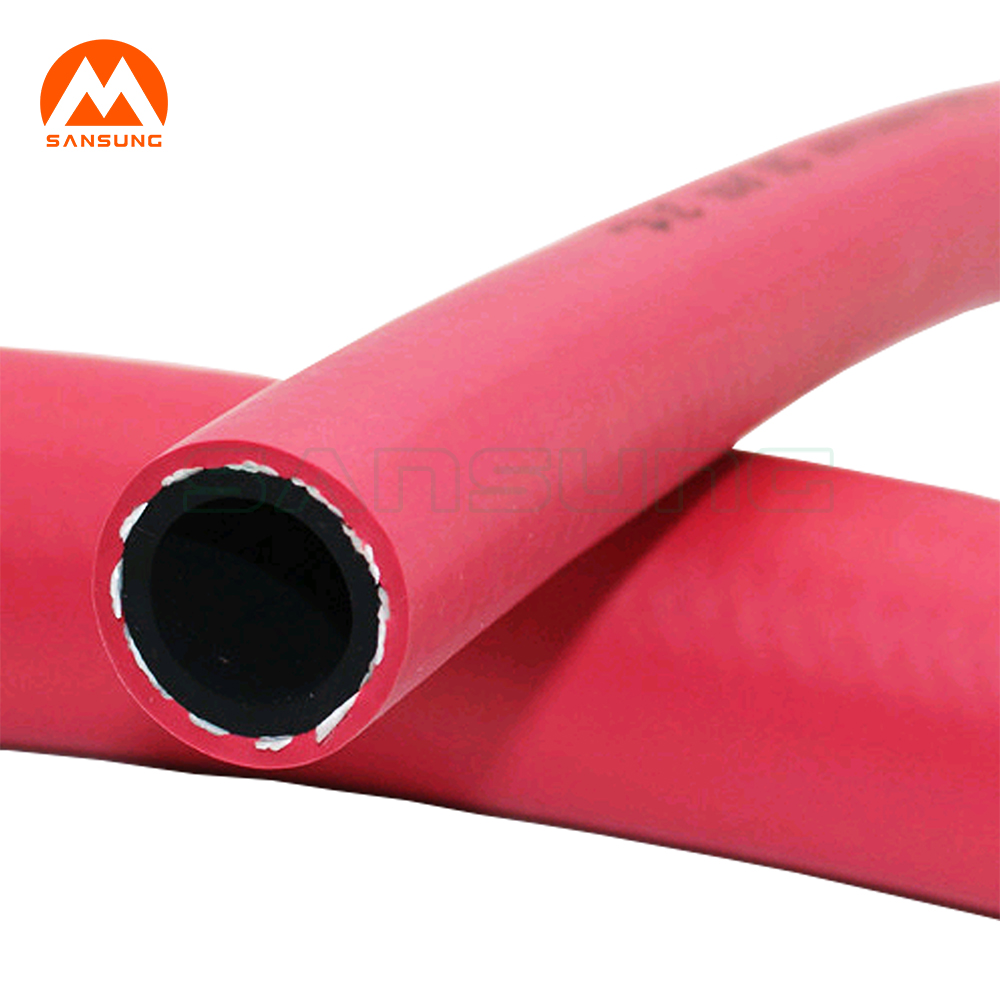

Tube: NR & SBR synthetic rubber
Reinforcement: high tensile polyester fiber braided
Cover: NR & SBR synthetic rubber
Temperature:
-30℃ ~ +80℃
Color:
black, red, yellow, blue, green, orange, etc...
Application:
Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production, etc...
Standard Length:
50M, 100M
Hose Surface:
smooth surface, cloth-wrapped surface, groove surface
| Product Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight |
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| RA-05 | 3/16" | 5 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.02 | 0.15 |
| RA-06 | 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.025 | 0.17 |
| RA-08 | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.03 | 0.22 |
| RA-10 | 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.04 | 0.26 |
| RA-13 | 1/2" | 13 | 21 | 20 | 300 | 60 | 900 | 100 | 0.07 | 0.4 |
| RA-16 | 5/8" | 16 | 24 | 20 | 300 | 60 | 900 | 50 | 0.06 | 0.45 |
| RA-19 | 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 0.07 | 0.7 |
| RA-25 | 1" (1b) | 25 | 36 | 12 | 180 | 36 | 540 | 50 | 0.09 | 0.85 |
| RA-25/2 | 1" (2b) | 25 | 37 | 20 | 300 | 60 | 900 | 50 | 0.1 | 0.95 |
| RA-32 | 1-1/4" | 32 | 44 | 10 | 150 | 30 | 450 | 50 | 0.16 | 1.4 |
| RA-38 | 1-1/2" | 38 | 51 | 10 | 150 | 30 | 450 | 50 | 0.2 | 1.7 |
| RA-51 | 2" | 51 | 65 | 10 | 150 | 30 | 450 | 50 | 0.2 | 2.2 |
